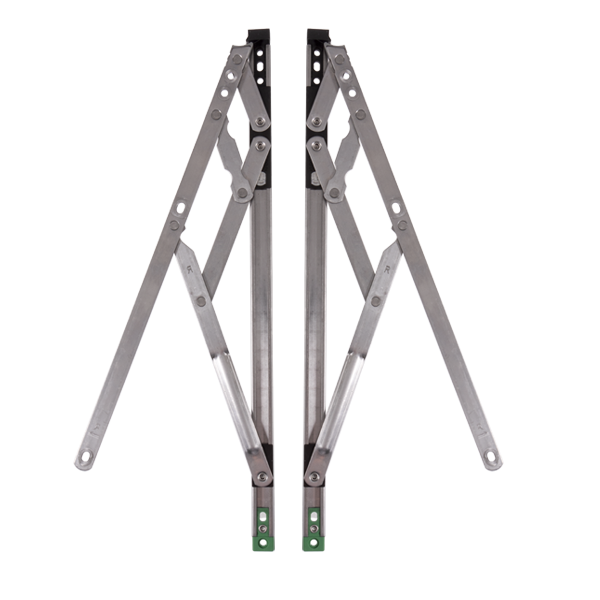

Easy clean friction hinges are designed to make the cleaning of outside windows safer and easier, achieved by fully opening the window, pushing the button and simply pulling the sash. The product is produced in 13mm and 17mm stack heights and meets the requirements of BS EN 13126-6:2008.
- Designed to open initially to egress in one operation
- Easy-clean is achieved by fully opening the window, pushing the button and simply pulling the sash
- High quality Stainless steel for long life performance
- Capable of meeting the requirements of BS 6375 as part of a compliant window system
- Supplied in pairs
- Designed to meet the requirements of Building Regulations Approved Documents B Fire Safety 2006 edition in a window of appropriate dimensions
- Patent pending PAS 24:2012 security performance can be obtained in conjunction with a Hingeguard which is designed to only engage when the window is under attack and prevents disengagement by supporting the friction hinge
- Meets the requirements of BS EN 13126-6:2008
Size Comparison:
- 12 inch (336mm): Opening Angle: 90° / Max Casement Width: 600mm / Max Casement Height: 1200mm / Max Weight: 22kg
- 16 inch (424mm): Opening Angle: 90° / Max Casement Width: 700mm / Max Casement Height: 1300mm / Max Weight: 24kg
