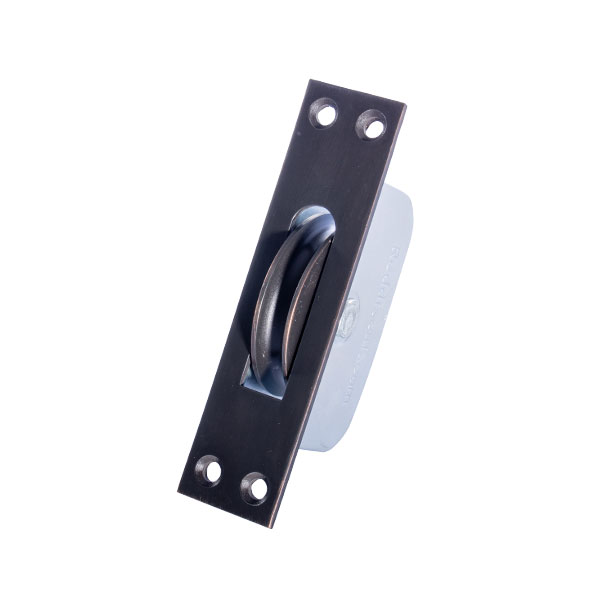

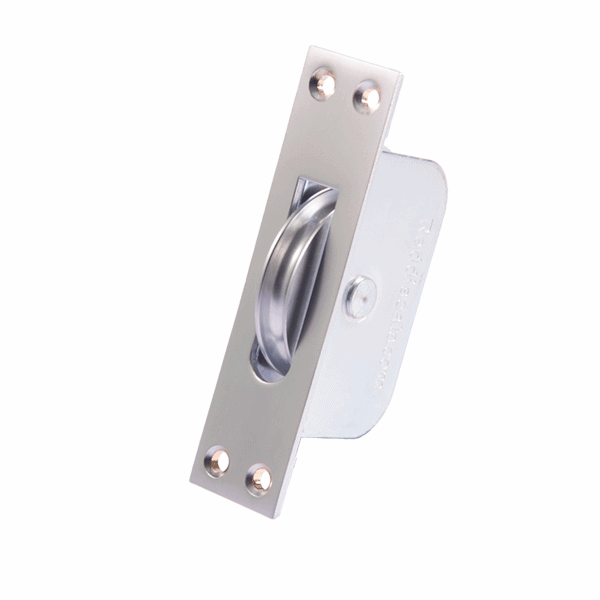

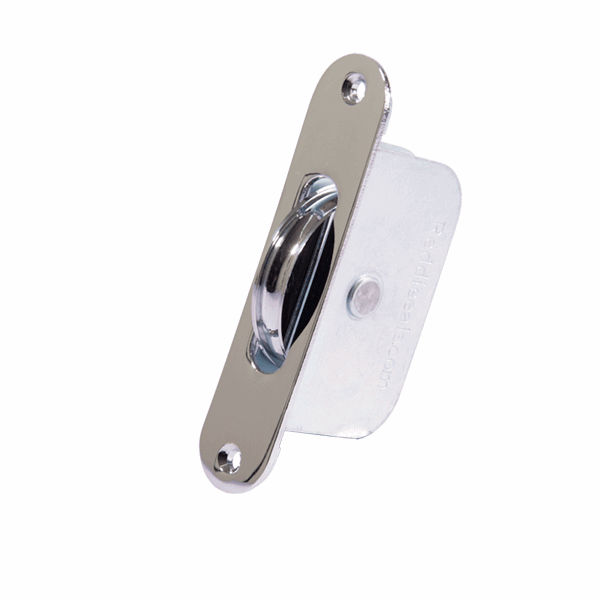

Our large curved wheel sash pulley is heavy-duty ball bearing pulley that are designed for use on very large windows where high performance is demanded. They are available in square or radius ends. The Square End pulleys are available in five colour options and the Radius Ends are available in seven colour options. Additionally the Radius Pulleys are available in 316 marine grade stainless steel for high corrosion resistance.
- Ball Bearing Type
- 100kg Max sash weight

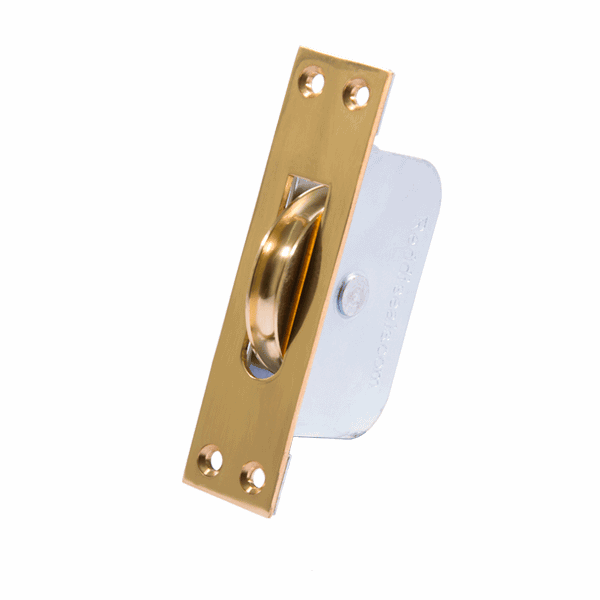

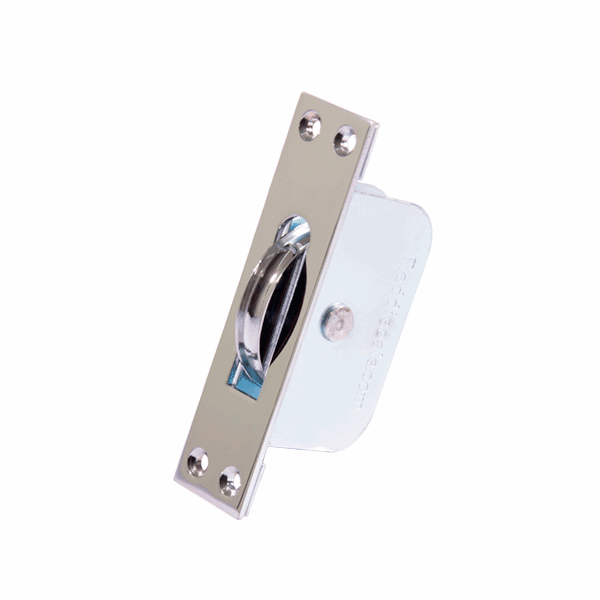

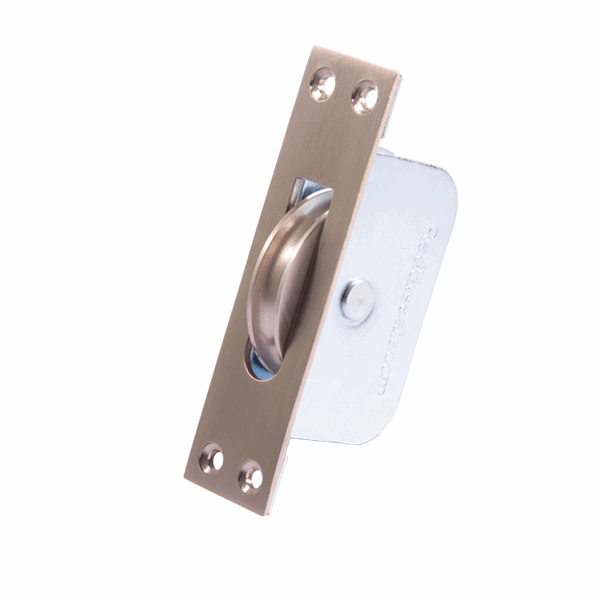

- Square End finishes: PVD Brass, Polished Brass, Polished Chrome, Satin Nickel, and Satin Chrome

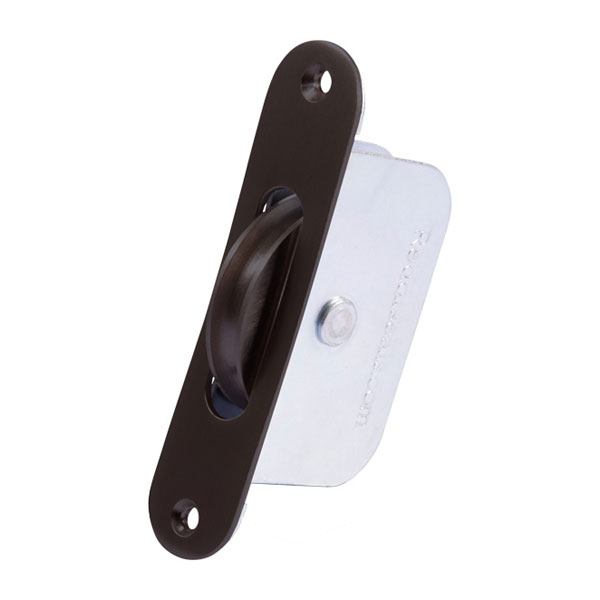

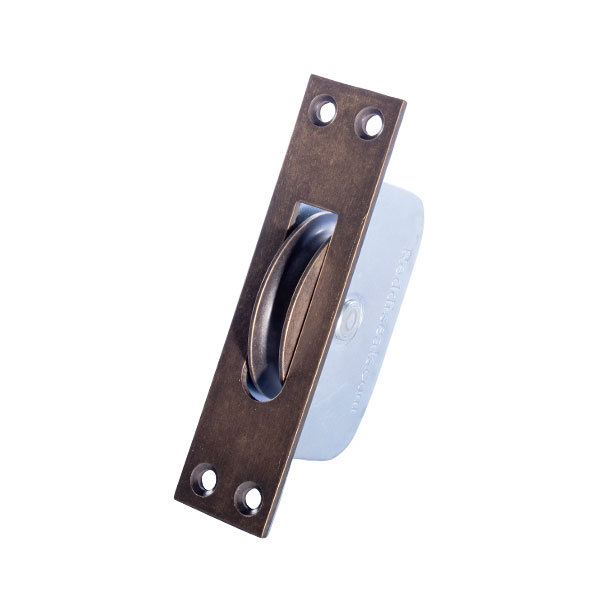

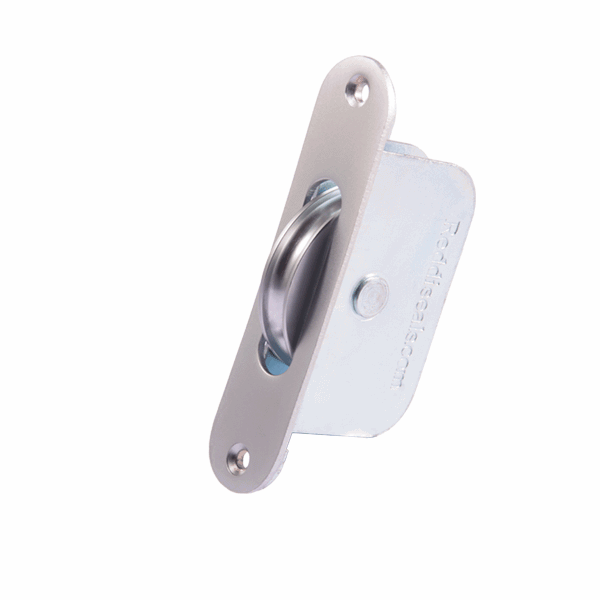

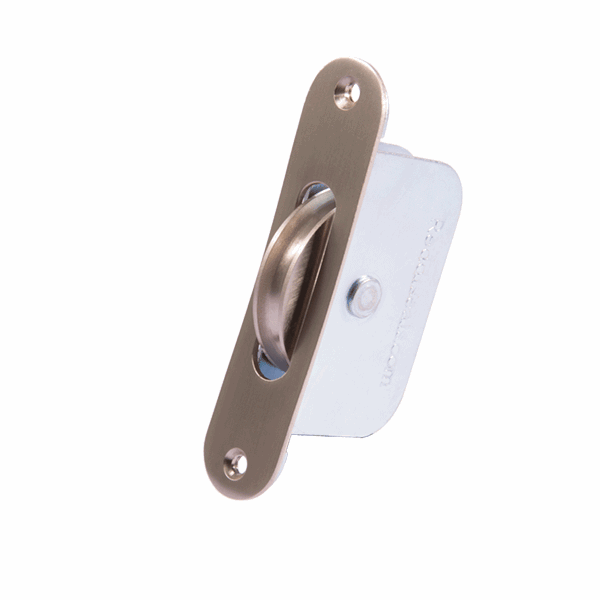

- Radius End Finishes finishes: PVD Brass, Polished Brass, Polished Chrome, Satin Nickel, Satin Chrome, Oil Rubbed Bronze, Polished Stainless Steel and Mottled Antique Brass

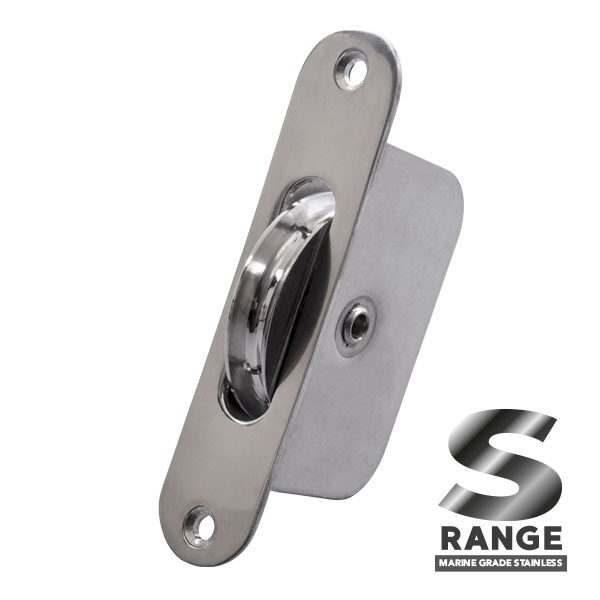

- Our Radius End Polished Stainless Steel option is manufactured from marine grade 316 stainless steel, for high corrosion resistance, especially from salt spray in coastal regions, polished to a high finish
- Wheel type: Curved
- Recess: 50mm
- Use with: Cord
- Square End face plate: 1¼ x 5″ / 32x127mm
- Radius End Face plate: 1⅛ x 5″ / 29x127mm
- Wheel diameter: 2¼” / 57mm
N.B screws supplied separately
